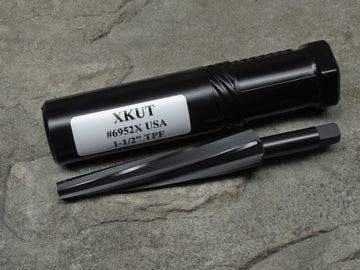

1-1/2" TAPER PER FOOT BALL JOINT & TIE ROD TAPER REAMER X-SERIES #6952X
ABOUT
Our item #6952X is a 1½” taper per foot spiral flute ball joint and tie rod taper reamer in our new x-series product line. It is not only our cost effective alternative to our popular product #6952 but also, a spiral version of our product #1776. This is a genuine automotive taper at 1½” taper per foot, also known as a 7.15 degree included angle. This reamer is the correct taper for the popular GM Chevy 1 Ton Tre tie rod end and the Heavy Duty Dana 30, 44, and 60 crossover steering applications.
SPECIFICATIONS
Over All Length: 6 ½”
Over All Flute Length: 4 ½”
Large End Diameter: 1”
Small End Diameter: 7/16”
Shank Diameter: ½”
Flute Design: Spiral
Flute Count: 6
Hardness: 63 Rockwell
X-Series
USE
This reamer will do minor production runs and cut material quickly at speeds from 100 to 400 RPM. The use of a full pecking cycle and oil-based coolant is strongly recommended for maximum performance and finish. This reamer can be used by hand with a tap wrench or socket. It can also be used in a drill press or vertical mill with a ½” or larger drill chuck or ½” collet. Keep in mind, this reamer is not a drill. Run this reamer at half the speed (RPM) and twice the feed that you would a drill.
More Information
This 1½” taper per foot ball joint and tie rod taper reamer is brand new and manufactured with pride in the U.S.A. by XKUT. We are the manufacturer of this reamer. We offer an in-house promotional $10.00 per reamer re-sharpening service (priority 2-day return shipping to customer included) on our X-series reamers. See our other special tapered reamers and reamer sets on our website at xkut-reamers.com.
