2” Taper Per Foot | Imperial TRE | Automotive Taper Reamer | #6902

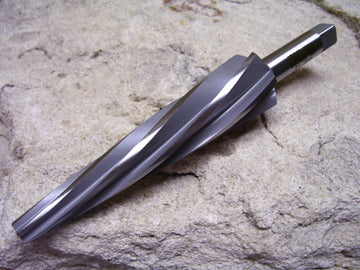

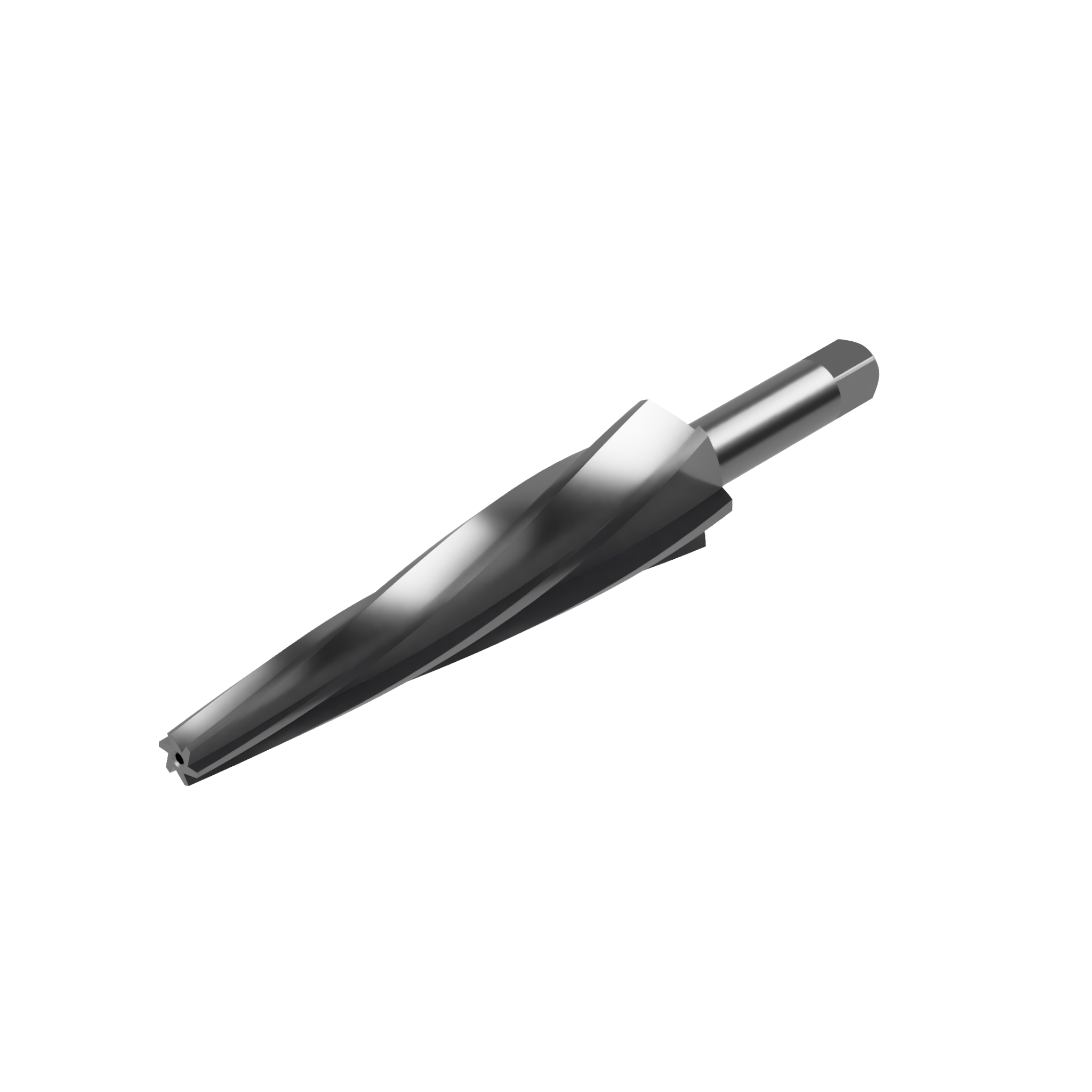

Item #6902 is an American-made ball joint & tie rod taper reamer. It is commonly referred to as a 10-degree automotive taper reamer. It features a spiral, 6 flute count design manufactured out of premium M2 high speed steel. It is commonly used in heavy duty steering applications.
Common Applications:
- K5208
- K6117
- K6136
- K6141
- K6145
- Many more…
*Always verify your stud taper & dimensions before reaming. Use our Taper Reamer Calculator to help select your correct solution!

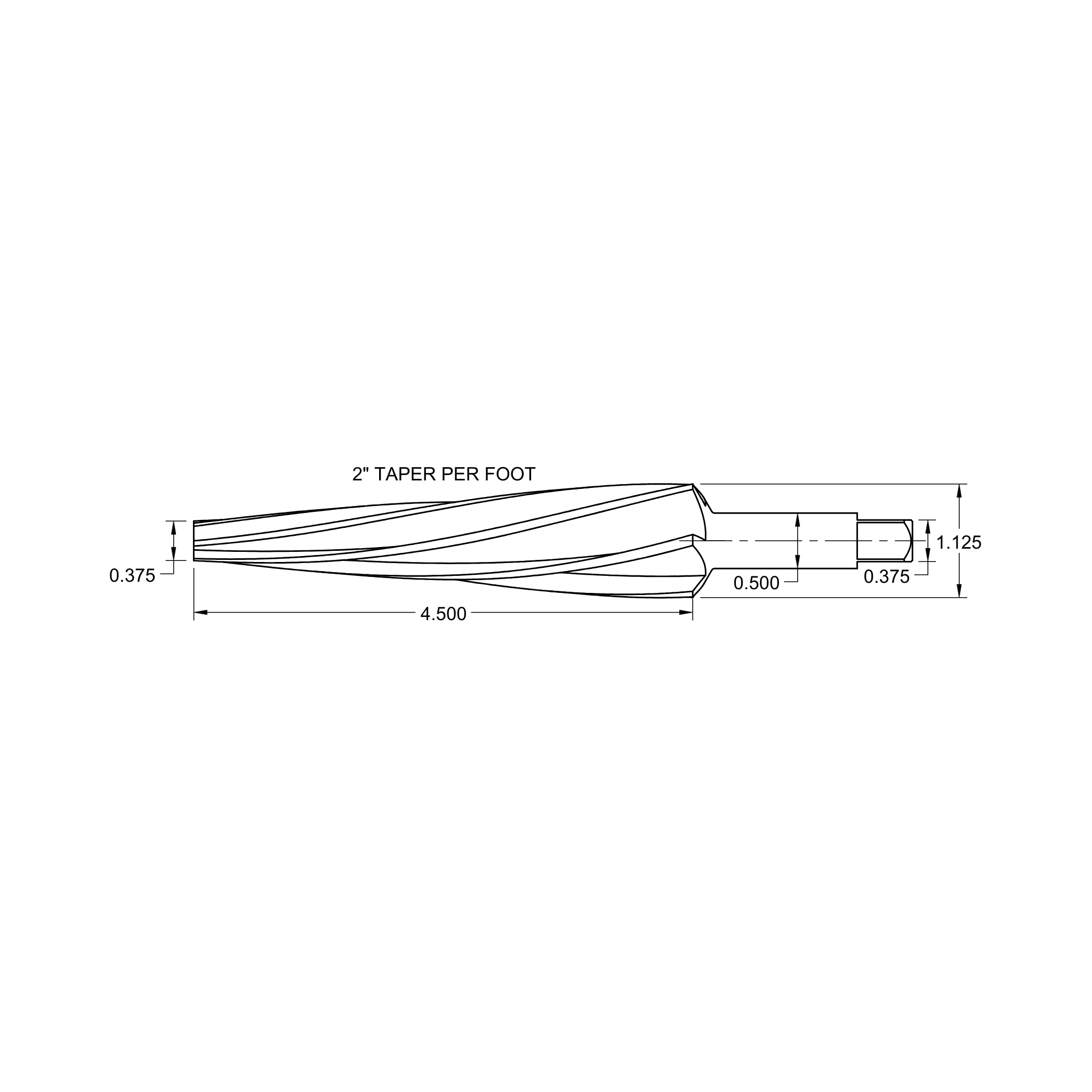

Specifications:
- 2” TPF (9.527° Included Angle)
- Small End Diameter: 0.375”
- Large End Diameter: 1.125”
- Overall Flute Length: 4.500”
- Overall Length: 6.500”
- Shank Diameter: 0.500”
- Flute Design: Spiral
- Flute Count: 6
- Material: M2 High Speed Steel
- Hardness: 64 Rockwell
Use
This reamer will do production runs and cut material quickly at speeds
from 100 to 400 RPM. The use of a full pecking cycle and oil-based
coolant is strongly recommended for maximum performance and finish. This
reamer can be used by hand with a tap wrench or socket. It can also be
used in a drill press or vertical mill with a ½” or larger drill chuck
or ½” collet. Keep in mind, this reamer is not a drill. Run this reamer
at half the speed (RPM) and twice the feed that you would a drill.
More Information
This reamer is brand new and manufactured with pride in the USA by XKUT. We are the manufacturer of this reamer. We offer an in-house $20.00 per reamer re-sharpening service (priority 2-day shipping to
customer is included) on all XKUT reamers. Contact us for more information on this.
